Resistivity Imaging in 2D & 3D!
Click on the image for more detailed view or information Data Collected Geofyzika RS 100M
Glacial Clay and Till example near Crookston, MN
Data Collected Geofyzika RS 100M

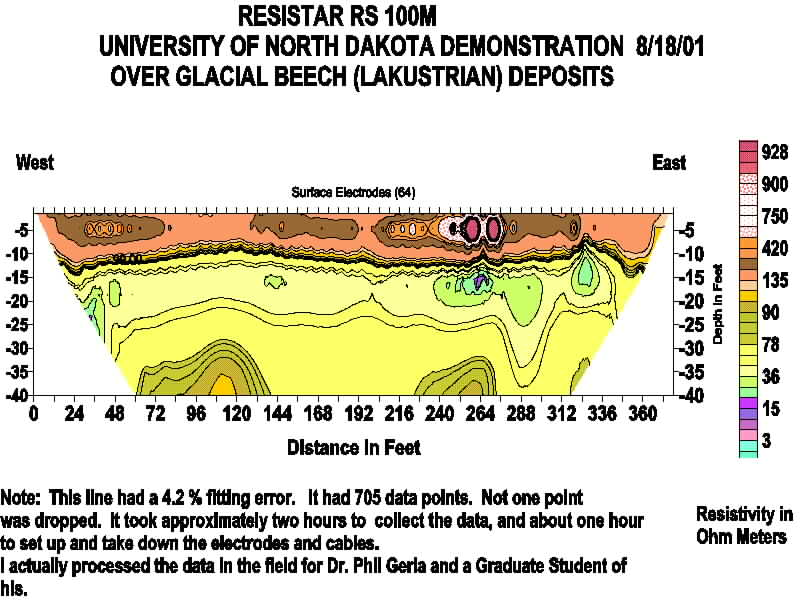

This line had 705 data points and was 378 feet in length.  Three sections of cable were rolled.   It took about 2.5 hours to collect the data for this 2D line.   This line had a 4.2% fitting error and was processed in the field with RES2DINV.   The boundry layer between the yellow clay and the brownish sandy lome is about 12 to 15 feet deep.  The clayey sandy lome was deposited by Lake Agazzi durning glacial times, some 20 thousand years ago.                                                                                                                                                                                                      NEXT

---
