Resistivity Imaging in 2D & 3D!
Click on the image for more detailed view or information

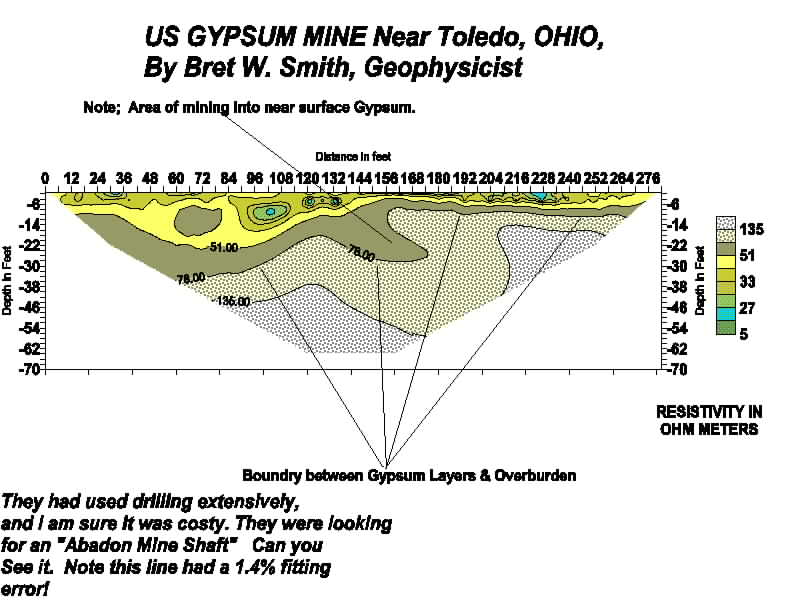

US GYPSUM MINE Near Toledo, OH Data Collected Geofyzika RS 100M

Note the Abandon Mine here.  This line had one of the lowest percent fitting errors that I have ever seen.  Less than 2%! It took only 70 minutes to collect this data.  The data set had some 529 data points!


Please click next to continue reviewing resistivity imaging case studies                                 :  NEXT

---
